Zupper Hand Hydraulic Pump | Model : ZUPPER-CP-700/700B

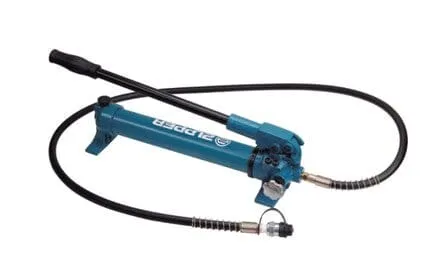

Model : CP-700
Features :
- Hydraulic operated pump to drive crimping head, cutting head and punching head, including high pressure hose and coupler plug
- PT3/8" screw thread, the oil number is Shell Tellus T 15, which must be changed every half year
Specifications :
Type : Hand
Max output pressure :
- Low pressure : 2MPa
- High pressure : 70MPa
Output of the oil :
- Low pressure : 11cc
- High pressure : 1.4cc
Capacity of oil : 940cc
Direction of piston : Double
Weight : Approx. 9kg
Measurement (LxWxH) : 510x140x150mm

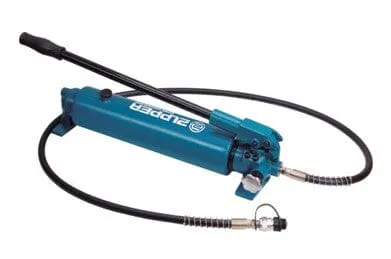

Model : CP-700B
Features :
- Big capacity of oil, operate with big cylinder
- Hydraulic operated pump to drive crimping head, cutting head and punching head, including 2M high pressure hose and coupler plug
- PT3/8" screw thread, the oil number is Shell Tellus T 15, which must be changed every half year
Specifications :
Type : Hand
Max output pressure :
- Low pressure : 2MPa
- High pressure : 70MPa
Output of the oil :
- Low pressure : 10cc
- High pressure : 1.8cc
Capacity of oil : 1800cc
Direction of piston : Double
Weight : Approx. 12.5kg
Measurement (LxWxH) : 510x150x200mm
